XRA-100R (right-hand caliper)

Every stop is made simple: you park up, give the lock a turn, and your BMW is secured. To set off, simply turn the key the other way and the road is yours. The RoadLok XRA-100R remains permanently attached to the front right brake caliper: it’s the anti-theft device you don’t have to carry around, can’t lose and won’t forget.

Why the RoadLok makes all the difference

• Permanently attached to the brake caliper: it’s always there, so you won’t leave it at home
• Locks in three seconds: one movement, one turn of the key, done
• No risk of setting off whilst locked and falling off: unlike a conventional disc lock, the RoadLok immobilises the wheel without any loose parts striking the fork or brake caliper
• ART 4 certified, the European standard for burglary resistance recognised by most insurance companies

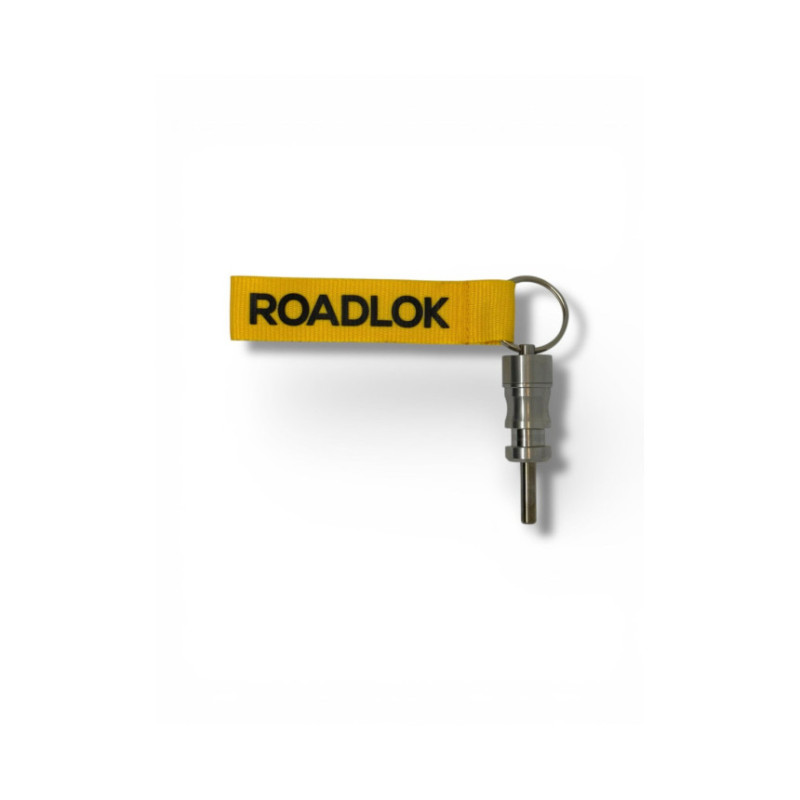

• Patented BrakeBolt system: the bolt passes through the disc as close as possible to the caliper, leaving no point of entry for tools used in attempted theft
• Machined from solid billet aluminium and stainless steel, designed and manufactured in the United States since 2005
• Adopted by leading manufacturers, distributed as an original equipment accessory by KTM PowerParts

The right model for your motorbike

Choose your RoadLok based on your front brake caliper, which must be radial. The key measurement is the centre-to-centre distance between the two caliper mounting bolts.

• Centre-to-centre distance 100 mm (Brembo): XRA-100R (right) or XRA-100L (left)
• Centre-to-centre distance 108 mm (Japanese calipers: Nissin, Tokico): XRA-108R
• Centre distance 80 mm (Bybre): XRA-080R (right) or XRA-080L (left)

Fitting

The RoadLok simply replaces the caliper mounting bolts with the supplied reinforced bolts, without any other modifications to the motorbike. We recommend installation by a professional to ensure the correct tightening torque for the brake bolts.

Included

• RoadLok anti-theft device (1)
• Wrenches (2)
• Key ring (1)
• Mounting hardware

Compatibility is subject to the presence of a radial brake caliper and the correct mounting centre distance. Not sure about your model? Please contact us before ordering, and we’ll check for you.
